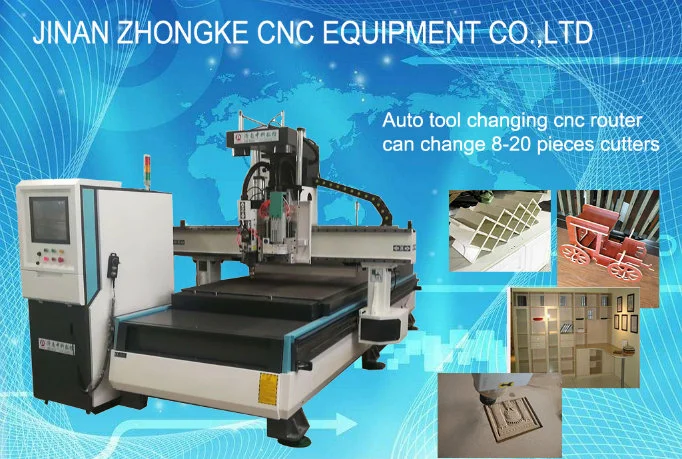

Machine photo:
Machine feature:
1. Working area:1300*2500*200mm
2. 9kw ATC air cooling spindle,12000-24000RPM
3. Taiwan SYNTEC 6MB control system, can be optional NK 260 control system
4. Cylinder oposition system
5. Spindle cover for safety operation
6. Carousel tool magazine with 12-20 tools
7. 12-20 pieces tool holder,can be with 20mm max.diameter tools
8. Auto oil mist cooling sprayer for working on metal
9. #30 Taiwan HIWIN linear guide rail
10. High-precision helical rack gear
11. Vacuum & T-slot working table with 12 zones
12. 1kw Japanese YASKAWA servo system

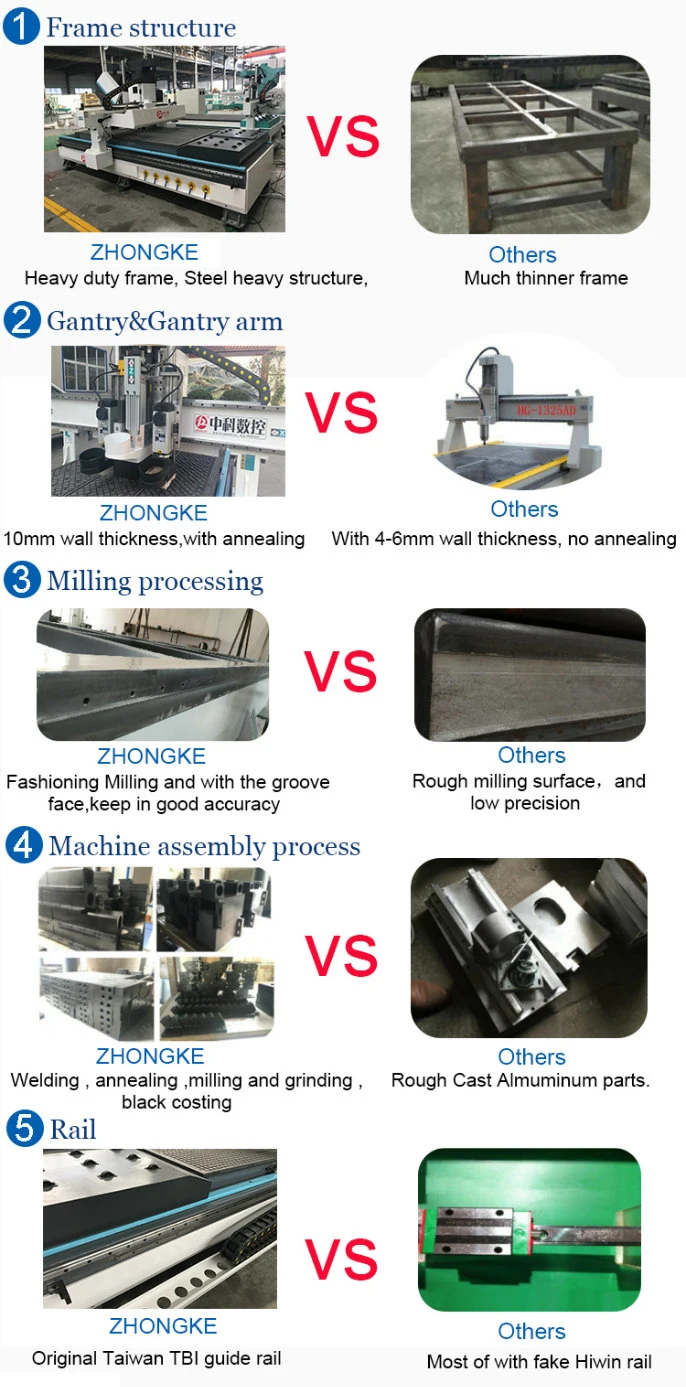

Comparation of machine:
Specification
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| Table Surface | Vacuum and T-slot Table |
| Frame | Welded Structure,heavy duty T-structure |
| X, Y Structure | Helical Rack gear, Taiwan Hiwin Rail Linear Bearings |
| Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
| Max. Power Consumption | 2.0KW (without spindle) |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.0kw ATC air cooling spindle |
| Spindle Speed | 12000-24000RPM |
| Drive Motors | servo motor and driver, can be optional YASKAWA or Leadshine |
| Working Voltage | AC380V/50/60Hz,3PH |
| Control System | Taiwan SYNTEC control system, can be optional NK 260 control system |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
PS: All the working area and specifications can be customized according to your requests.
Application:
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Sample pictures
Technical Support:
1. Warranty & Aftersales service:
A)warranty is 1 year
B)24 hour technical support by email or calling
C)User-friendly english manual for machine using and maintaining
2. Rationalization of pre-sales consulting
JINAN ZHONGKE COMPANY photo
If you have special requirements, of course, we can customize the machine according to your requirements to suit your needs.
